Submitting a Single Point Energy Calculation

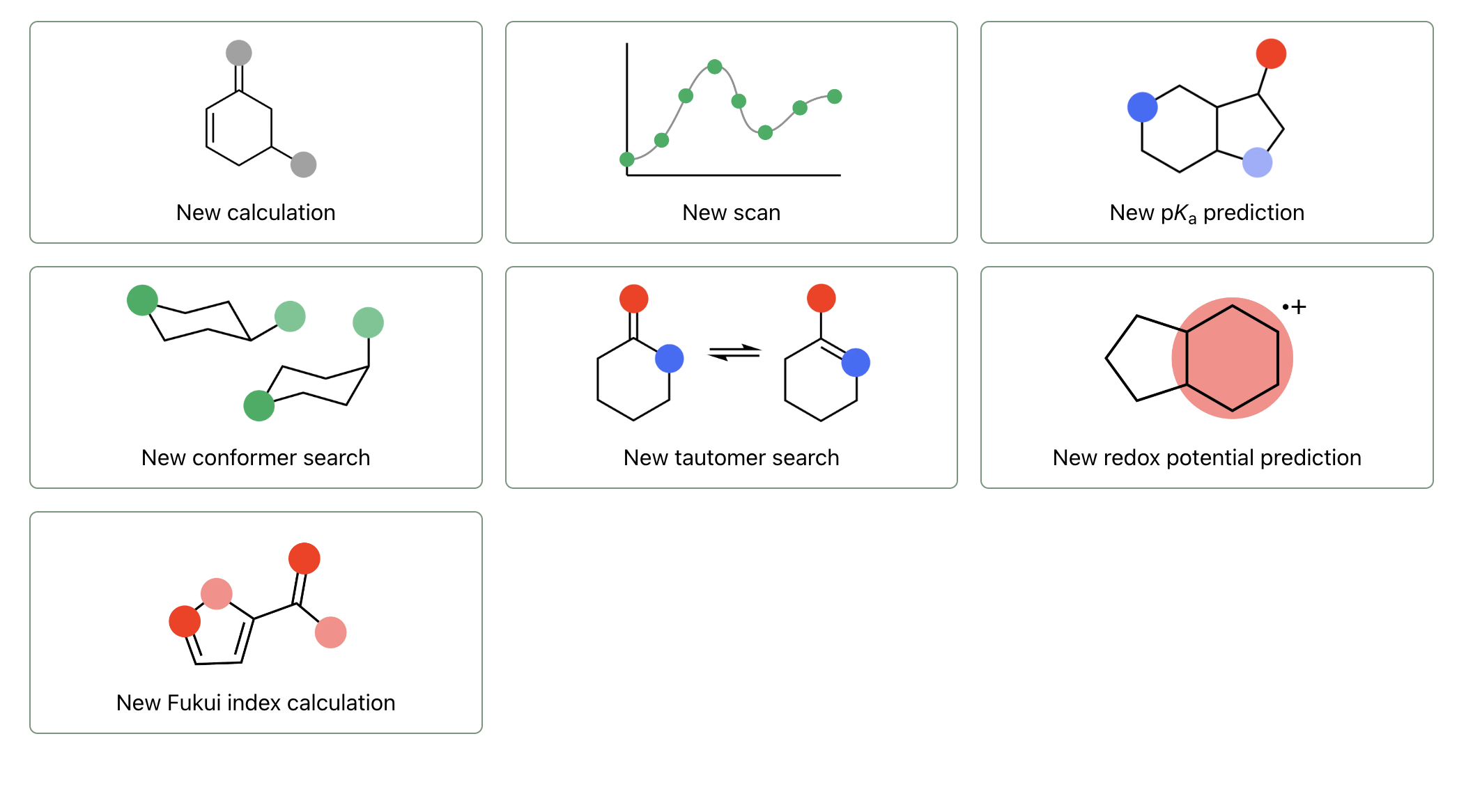

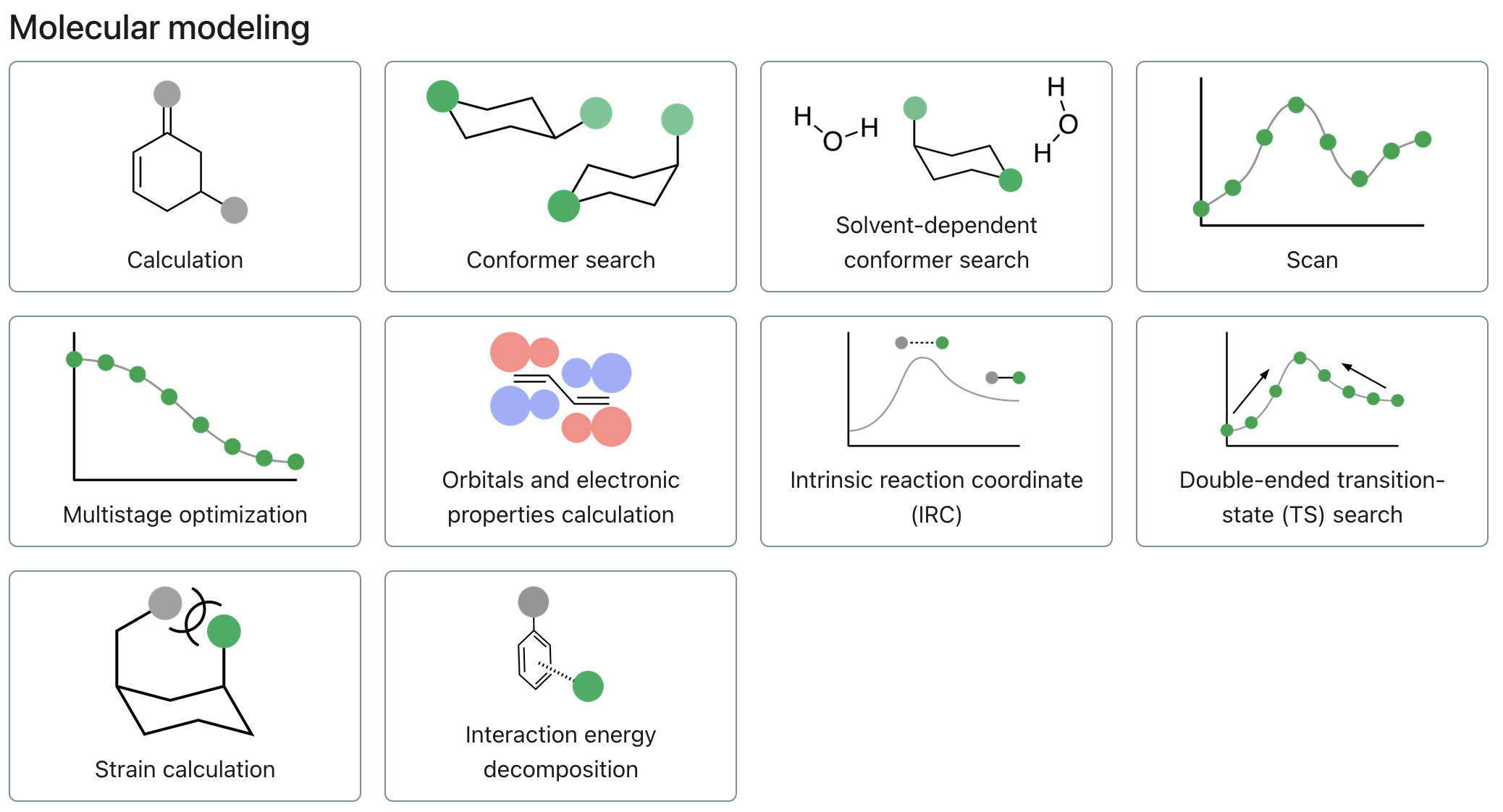

To run a new single point energy calculation, find your way to this screen in Rowan:

Rowan's workflow selection page

If you're currently viewing a calculation or workflow you already ran, hit the "X" icon in the top left of your screen, just below the navigation bar.

To start submitting a singe point energy calculation, click "New calculation."


Select a Molecule

Calculations in Rowan are run on molecules (or systems of molecules).

To upload a molecule, you can use any of the following input formats:

  • Upload a file, using the "Upload Files" button. (Rowan accepts .xyz, .gjf, .out, .mol2, and .mae chemical file formats.)
  • Input a SMILES string, using the "Input SMILES" button.
  • Paste XYZ coordinates, using the "Paste XYZ" button.
  • Drag and drop files anywhere on the new calculation page.

For small molecules, it's often easiest to start with a SMILES string. Many 2D molecule drawing programs, including ChemDraw and MarvinJS, will let you export/copy structures as SMILES.

Editing Structures

To modify a structure you've already input, you can click the pencil icon in the top right corner of the molecule viewer and use Rowan's 3D editor.

Charge and Multiplicity

Make sure to set the charge and spin multiplicity for your selected molecule.


Level of Theory

Select the level of theory you'd like to run your calculation at by choosing an appropriate method and basis set.

Rowan won't let you submit a calculation with an incomplete basis set for the molecules you've input.

If any input field shows red, hover over it and read the text that will appear for information about the error.

Corrections

If the engine and method you've selected supports it, use the dropdown to select a correction (currently, Rowan only supports the D3BJ correction).

Solvent

If the engine and method you've selected supports it, click on the solvent field to select a solvent model and solvent.


Tasks

Select the tasks you'd like to run on your structure by clicking the corresponding checkboxes.

To run a single point energy calculation, check "Single Point Energy" and leave all the other checkboxes unchecked.

Rowan can run the following tasks:

  • Single Point Energy
  • Gradient
  • Charge
  • Spin Density
  • Dipole
  • Hessian/Frequencies
  • Thermochemistry
  • Optimize
  • Optimize (TS)

When "Optimize" is selected, Rowan will always conduct the geometry optimization first and carry out all other tasks on the final structure.


Other Settings

Beyond these basic steps, consider:

  • Naming a calculation before you submit it
  • Choosing an appropriate mode for your calculation
